Hyphenation

Two hyphenation patterns are commonly used in manuscripts. The first hyphenation pattern is shown in Figure 1.

pattern1

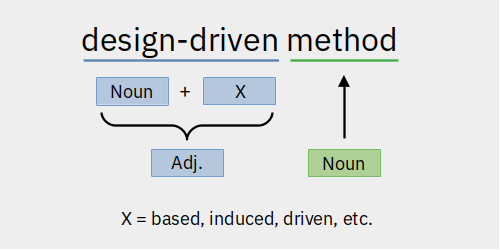

Figure 1. First hyphenation pattern.
Example 1. First hyphenation pattern
example

data-driven approach

example

temperature-based controller

example

motion-induced blindness

Use the singular form of the noun before "based", "induced", etc.

Mistake
  • The author uses the plural form of a noun in an adjective.

Remedy
  • Use the singular form.

Example 2. Singular noun in adjective
example

method based on infrared images


incorrect

infrared-images-based method

correct

infrared-image-based method

Avoid an excessive number (> 3) of hyphens.

Example 3. Number of hyphens
example

method based on infrared images that have high resolution


incorrect

high-resolution-infrared-image-based method

correct

method based on high-resolution infrared images

The second hyphenation pattern is shown in Figure 2.

pattern2

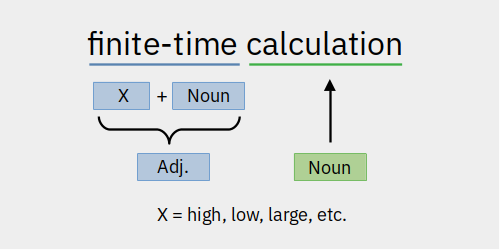

Figure 2. Second hyphenation pattern.
Example 4. Second hyphenation pattern
example

high-strength composite

example

low-temperature plasma

example

finite-time algorithm

Do not hyphenate words that end in "ly" (e.g., "quickly", "slowly", etc.).

Mistake
  • The author hyphenates a word that ends in "ly".

Remedy
  • Use a space instead of a hyphen for words that end in "ly".

Example 5. Incorrect hyphenation
incorrect

fully-manual system

correct

fully manual system


incorrect

highly-dense polyethylene

correct

highly dense polyethylene

correct

high-density polyethylene

Adverbs that do not end in "ly" can be hyphenated.

Example 6. Adverbs that do not end in "ly"
example

well-ordered graphene layers

example

fast-acting insulin
